Forms

XMLUI enables to create forms without the hassle of managing, editing, validating, and saving the information you provide in the UI.

This example demonstrates the core pattern: a Form with input components placed directly inside it.

<App>
  <Form data="{{ name: 'Joe', age: 43 }}">
    <FlowLayout>
      <H3>Customer information</H3>
      <TextBox bindTo="name" label="Customer name" />
      <NumberBox
        bindTo="age"
        label="Age"
        integersOnly="true"
        zeroOrPositive="true"
      />
    </FlowLayout>
  </Form>
</App>
<App>
  <Form data="{{ name: 'Joe', age: 43 }}">
    <FlowLayout>
      <H3>Customer information</H3>
      <TextBox bindTo="name" label="Customer name" />
      <NumberBox
        bindTo="age"
        label="Age"
        integersOnly="true"
        zeroOrPositive="true"
      />
    </FlowLayout>
  </Form>
</App>
  • Form encapsulates the management of form UI elements and data handling
  • The data property holds the form's data
  • Input components such as TextBox, NumberBox, Checkbox, Select, etc. bind directly to form data using bindTo
    • bindTo specifies the property name within the data to bind to
    • validation and other properties are set directly on the input component

When a component is instantiated inside a Form, the form creates a runtime context ($data) that is automatically available to all nested components — including components declared in separate files — so any input component's bindTo can target form fields without passing the form data via props.

Form Layouts

You can use any of XMLUI's layout mechanisms with a Form. Here is a single-column format using FlowLayout.

<App>
  <Form data="{{
      firstname: 'Jake',
      lastname: 'Hard',
      jobTitle: 'janitor',
      experience: 'broom'
    }}">
    <FlowLayout>
      <TextBox label="Firstname" bindTo="firstname" />
      <TextBox label="Lastname" bindTo="lastname" />
      <TextBox label="Job Title" bindTo="jobTitle" />
      <TextBox label="Experience" bindTo="experience" />
    </FlowLayout>
  </Form>
</App>
<App>
  <Form data="{{
      firstname: 'Jake',
      lastname: 'Hard',
      jobTitle: 'janitor',
      experience: 'broom'
    }}">
    <FlowLayout>
      <TextBox label="Firstname" bindTo="firstname" />
      <TextBox label="Lastname" bindTo="lastname" />
      <TextBox label="Job Title" bindTo="jobTitle" />
      <TextBox label="Experience" bindTo="experience" />
    </FlowLayout>
  </Form>
</App>

Set each item's width to 50% to create a two-column layout.

<App>
  <Form
    data="{{
      firstname: 'Jake',
      lastname: 'Hard',
      jobTitle: 'janitor',
      experience: 'broom'
    }}">
    <FlowLayout>
      <TextBox label="Firstname" bindTo="firstname" width="50%" />
      <TextBox label="Lastname" bindTo="lastname" width="50%" />
      <TextBox label="Job Title" bindTo="jobTitle" width="50%" />
      <TextBox label="Experience" bindTo="experience" width="50%" />
    </FlowLayout>
  </Form>
</App>
<App>
  <Form
    data="{{
      firstname: 'Jake',
      lastname: 'Hard',
      jobTitle: 'janitor',
      experience: 'broom'
    }}">
    <FlowLayout>
      <TextBox label="Firstname" bindTo="firstname" width="50%" />
      <TextBox label="Lastname" bindTo="lastname" width="50%" />
      <TextBox label="Job Title" bindTo="jobTitle" width="50%" />
      <TextBox label="Experience" bindTo="experience" width="50%" />
    </FlowLayout>
  </Form>
</App>

Use star sizing to allocate widths flexibly. Here Firstname and Lastname equally share the space remaining after the 100-px-wide Title.

<App>
  <Form
    data="{{
      title: 'Mr.',
      firstname: 'Jake',
      lastname: 'Hard',
      jobTitle: 'janitor',
      experience: 'broom'
    }}"
    onSubmit="(toSave) => toast.success(JSON.stringify(toSave))">
    <FlowLayout>
      <HStack>
        <TextBox label="Title" bindTo="title" width="100px" />
        <TextBox label="Firstname" bindTo="firstname" width="*" />
        <TextBox label="Lastname" bindTo="lastname" width="*" />
      </HStack>
      <TextBox label="Job Title" bindTo="jobTitle" width="50%" />
      <TextBox label="Experience" bindTo="experience" width="50%" />
    </FlowLayout>
  </Form>
</App>
<App>
  <Form
    data="{{
      title: 'Mr.',
      firstname: 'Jake',
      lastname: 'Hard',
      jobTitle: 'janitor',
      experience: 'broom'
    }}"
    onSubmit="(toSave) => toast.success(JSON.stringify(toSave))">
    <FlowLayout>
      <HStack>
        <TextBox label="Title" bindTo="title" width="100px" />
        <TextBox label="Firstname" bindTo="firstname" width="*" />
        <TextBox label="Lastname" bindTo="lastname" width="*" />
      </HStack>
      <TextBox label="Job Title" bindTo="jobTitle" width="50%" />
      <TextBox label="Experience" bindTo="experience" width="50%" />
    </FlowLayout>
  </Form>
</App>

Input Components

Use XMLUI input components directly inside a Form. Each component has a bindTo property that connects it to a field in the form's data.

Checkbox

<App>
  <Form data="{{ option1: true, option2: false, option3: true }}"
    onSubmit="(toSave) => toast.success(JSON.stringify(toSave))">
    <Checkbox bindTo="option1" label="Option #1" labelPosition="end" />
    <Checkbox bindTo="option2" label="Option #2" labelPosition="end" />
    <Checkbox bindTo="option3" label="Option #3" labelPosition="end" />
  </Form>
</App>
<App>
  <Form data="{{ option1: true, option2: false, option3: true }}"
    onSubmit="(toSave) => toast.success(JSON.stringify(toSave))">
    <Checkbox bindTo="option1" label="Option #1" labelPosition="end" />
    <Checkbox bindTo="option2" label="Option #2" labelPosition="end" />
    <Checkbox bindTo="option3" label="Option #3" labelPosition="end" />
  </Form>
</App>

Checkbox component doc

DatePicker

<App>
  <Form
    data="{{ birthDate: '2021-04-08' }}"
    onSubmit="(toSave) => toast.success(JSON.stringify(toSave))">
    <DatePicker bindTo="birthDate" label="Birthdate" />
  </Form>
</App>
<App>
  <Form
    data="{{ birthDate: '2021-04-08' }}"
    onSubmit="(toSave) => toast.success(JSON.stringify(toSave))">
    <DatePicker bindTo="birthDate" label="Birthdate" />
  </Form>
</App>

DatePicker component doc

FileInput

Use FileInput to select one or multiple files.

<App>
  <Form
    data="{{ articles: null }}"
    onSubmit="(toSave) => toast.success(JSON.stringify(toSave))">
    <FileInput bindTo="articles" label="Articles file" />
  </Form>
</App>
<App>
  <Form
    data="{{ articles: null }}"
    onSubmit="(toSave) => toast.success(JSON.stringify(toSave))">
    <FileInput bindTo="articles" label="Articles file" />
  </Form>
</App>

FileInput component doc

NumberBox (integers)

Use integersOnly to restrict input to whole numbers.

<App>
  <Form
    data="{{ age: 30 }}"
    onSubmit="(toSave) => toast.success(JSON.stringify(toSave))">
    <NumberBox bindTo="age" label="Age" integersOnly="true" />
  </Form>
</App>
<App>
  <Form
    data="{{ age: 30 }}"
    onSubmit="(toSave) => toast.success(JSON.stringify(toSave))">
    <NumberBox bindTo="age" label="Age" integersOnly="true" />
  </Form>
</App>

NumberBox component doc

NumberBox (floating-point)

<App>
  <Form
    data="{{ distance: 192.5 }}"
    onSubmit="(toSave) => toast.success(JSON.stringify(toSave))">
    <NumberBox bindTo="distance" label="Distance in miles" />
  </Form>
</App>
<App>
  <Form
    data="{{ distance: 192.5 }}"
    onSubmit="(toSave) => toast.success(JSON.stringify(toSave))">
    <NumberBox bindTo="distance" label="Distance in miles" />
  </Form>
</App>

NumberBox component doc

RadioGroup

<App>
  <Form
    data="{{ title: 'Mr.' }}"
    onSubmit="(toSave) => toast.success(JSON.stringify(toSave))">
    <RadioGroup bindTo="title" label="Title">
      <Option label="Mr." value="Mr." />
      <Option label="Mrs." value="Mrs." />
      <Option label="Ms." value="Ms." />
      <Option label="Dr." value="Dr." />
    </RadioGroup>
  </Form>
</App>
<App>
  <Form
    data="{{ title: 'Mr.' }}"
    onSubmit="(toSave) => toast.success(JSON.stringify(toSave))">
    <RadioGroup bindTo="title" label="Title">
      <Option label="Mr." value="Mr." />
      <Option label="Mrs." value="Mrs." />
      <Option label="Ms." value="Ms." />
      <Option label="Dr." value="Dr." />
    </RadioGroup>
  </Form>
</App>

RadioGroup component doc

Select

<App>
  <Form
    data="{{ size: 'xs' }}"
    onSubmit="(toSave) => toast.success(JSON.stringify(toSave))">
    <Select bindTo="size" label="Box size">
      <Option label="Extra small" value="xs" />
      <Option label="Small" value="sm" />
      <Option label="Medium" value="md" />
      <Option label="Large" value="lg" />
    </Select>
  </Form>
</App>
<App>
  <Form
    data="{{ size: 'xs' }}"
    onSubmit="(toSave) => toast.success(JSON.stringify(toSave))">
    <Select bindTo="size" label="Box size">
      <Option label="Extra small" value="xs" />
      <Option label="Small" value="sm" />
      <Option label="Medium" value="md" />
      <Option label="Large" value="lg" />
    </Select>
  </Form>
</App>

Select component doc

Switch

<App>
  <Form
    data="{{ showBorder: true, showText: false, hideShadow: true }}"
    onSubmit="(toSave) => toast.success(JSON.stringify(toSave))">
    <Switch bindTo="showBorder" label="Show border" labelPosition="right" />
    <Switch bindTo="showText" label="Show text" labelPosition="right" />
    <Switch bindTo="hideShadow" label="Hide shadow" labelPosition="right" />
  </Form>
</App>
<App>
  <Form
    data="{{ showBorder: true, showText: false, hideShadow: true }}"
    onSubmit="(toSave) => toast.success(JSON.stringify(toSave))">
    <Switch bindTo="showBorder" label="Show border" labelPosition="right" />
    <Switch bindTo="showText" label="Show text" labelPosition="right" />
    <Switch bindTo="hideShadow" label="Hide shadow" labelPosition="right" />
  </Form>
</App>

Switch component doc

TextBox

<App>
  <Form
    data="{{ name: 'Joe' }}"
    onSubmit="(toSave) => toast.success(JSON.stringify(toSave))">
    <TextBox bindTo="name" label="Name" />
  </Form>
</App>
<App>
  <Form
    data="{{ name: 'Joe' }}"
    onSubmit="(toSave) => toast.success(JSON.stringify(toSave))">
    <TextBox bindTo="name" label="Name" />
  </Form>
</App>

TextBox component doc

TextArea

<App>
  <Form
    data="{{ description: 'This is a description' }}"
    onSubmit="(toSave) => toast.success(JSON.stringify(toSave))">
    <TextArea bindTo="description" label="Description" />
  </Form>
</App>
<App>
  <Form
    data="{{ description: 'This is a description' }}"
    onSubmit="(toSave) => toast.success(JSON.stringify(toSave))">
    <TextArea bindTo="description" label="Description" />
  </Form>
</App>

TextArea component doc

Provide data

You can define a Forms data structure and initial values directly.

<Form data="{{ name: 'Joe', age: 43 }}" />

Or via an API endpoint.

<Form data="/path/to/resource" />

Use the bindTo property to access fields in the structure.

<Form data="{{ name: 'Joe' }}">
  <TextBox bindTo="name" />
</Form>

Refer to data

The $data variable holds all the form's data. You can use values in $data to control input component properties. Here the Switchs value sets the enabled property of a TextBox.

<App>
  <Form data="{{ isEnabled: true, name: 'Joe' }}">
    <Switch label="Enable name" bindTo="isEnabled" />
    <TextBox enabled="{$data.isEnabled}" label="Name" bindTo="name" />
  </Form>
</App>
<App>
  <Form data="{{ isEnabled: true, name: 'Joe' }}">
    <Switch label="Enable name" bindTo="isEnabled" />
    <TextBox enabled="{$data.isEnabled}" label="Name" bindTo="name" />
  </Form>
</App>

Other components in the form can reference the form's data too. Here the Text updates reactively when input values change.

<App>
  <Form data="{{ firstname: 'John', lastname: 'Doe' }}">
    <TextBox label="Firstname" bindTo="firstname" />
    <TextBox label="Lastname" bindTo="lastname" />
    <Text>Full name: {$data.firstname} {$data.lastname}</Text>
  </Form>
</App>
<App>
  <Form data="{{ firstname: 'John', lastname: 'Doe' }}">
    <TextBox label="Firstname" bindTo="firstname" />
    <TextBox label="Lastname" bindTo="lastname" />
    <Text>Full name: {$data.firstname} {$data.lastname}</Text>
  </Form>
</App>

You can drill into $data to reference nested fields.

<App>
  <Form
    data="{{
      name: 'John smith',
      address: { street: '96th Ave N', city: 'Seattle', zip: '98005' }
    }}"
    onSubmit="(toSave) => toast.success(JSON.stringify(toSave))">
    <TextBox bindTo="name" label="Name" />
    <TextBox bindTo="address.street" label="Street" />
  </Form>
</App>
<App>
  <Form
    data="{{
      name: 'John smith',
      address: { street: '96th Ave N', city: 'Seattle', zip: '98005' }
    }}"
    onSubmit="(toSave) => toast.success(JSON.stringify(toSave))">
    <TextBox bindTo="name" label="Name" />
    <TextBox bindTo="address.street" label="Street" />
  </Form>
</App>

Validate data

The Form handles client-side validation, reporting issues interactively. Server-side validation happens when the form data is sent to the server. The Form handles the server's response and displays it in a summary or below input fields.

Validation properties are set directly on the input component.

minLength

<App>
  <Form data="{{ name: 'Billy Bob' }}">
    <TextBox bindTo="name" minLength="10" label="minLength" />
  </Form>
</App>
<App>
  <Form data="{{ name: 'Billy Bob' }}">
    <TextBox bindTo="name" minLength="10" label="minLength" />
  </Form>
</App>

Try submitting with fewer than 10 characters.

maxLength

<App>
  <Form data="{{ name: 'Billy Bob' }}">
    <TextBox bindTo="name" maxLength="11" label="maxLength" />
  </Form>
</App>
<App>
  <Form data="{{ name: 'Billy Bob' }}">
    <TextBox bindTo="name" maxLength="11" label="maxLength" />
  </Form>
</App>

Try entering more than 11 characters.

minValue

<App>
  <Form data="{{ age: 30 }}">
    <NumberBox bindTo="age" minValue="32" label="minValue" />
  </Form>
</App>
<App>
  <Form data="{{ age: 30 }}">
    <NumberBox bindTo="age" minValue="32" label="minValue" />
  </Form>
</App>

Try entering a number smaller than 32.

maxValue

<App>
  <Form data="{{ age: 30 }}" >
    <NumberBox bindTo="age" maxValue="29" label="maxValue" />
  </Form>
</App>
<App>
  <Form data="{{ age: 30 }}" >
    <NumberBox bindTo="age" maxValue="29" label="maxValue" />
  </Form>
</App>

Try entering a number larger than 29.

pattern

Evaluate predefined regex patterns: "email", "url", or "phone".

See the pattern property of TextBox.

regex

Evaluate a custom regex pattern.

<App>
  <Form data="{{ password: 'hello' }}">
    <!-- Only all uppercase letters are accepted -->
    <TextBox bindTo="password" regex="/^[A-Z]+$/" label="regex" />
  </Form>
</App>
<App>
  <Form data="{{ password: 'hello' }}">
    <!-- Only all uppercase letters are accepted -->
    <TextBox bindTo="password" regex="/^[A-Z]+$/" label="regex" />
  </Form>
</App>

Compound validation

You can use multiple validations.

<App>
  <Form data="{{ site: 'http://www.example.com' }}">
    <TextBox bindTo="site" minLength="10" maxLength="30"
      pattern="url" label="Multiple Validations" />
  </Form>
</App>
<App>
  <Form data="{{ site: 'http://www.example.com' }}">
    <TextBox bindTo="site" minLength="10" maxLength="30"
      pattern="url" label="Multiple Validations" />
  </Form>
</App>

Validation-specific severity

By default, all validations have a severity level of "error". You can set whether a validation should have a level of "warning" or "error".

<App>
  <Form data="{{ mobile: '+13456123456', website: 'http://www.blogsite.com' }}" >
    <TextBox
      bindTo="mobile"
      pattern="phone"
      patternInvalidSeverity="warning"
      label="mobilePattern" />
    <TextBox
      bindTo="website"
      pattern="url"
      patternInvalidSeverity="error"
      label="websitePattern" />
  </Form>
</App>
<App>
  <Form data="{{ mobile: '+13456123456', website: 'http://www.blogsite.com' }}" >
    <TextBox
      bindTo="mobile"
      pattern="phone"
      patternInvalidSeverity="warning"
      label="mobilePattern" />
    <TextBox
      bindTo="website"
      pattern="url"
      patternInvalidSeverity="error"
      label="websitePattern" />
  </Form>
</App>

Validation-specific messages

Predefined validations have built-in messages that you can change.

<App>
  <Form data="{{ age: 20 }}" >
    <NumberBox
      bindTo="age"
      minValue="21"
      rangeInvalidMessage="The given age is too low!"
      label="Invalid Message" />
  </Form>
</App>
<App>
  <Form data="{{ age: 20 }}" >
    <NumberBox
      bindTo="age"
      minValue="21"
      rangeInvalidMessage="The given age is too low!"
      label="Invalid Message" />
  </Form>
</App>

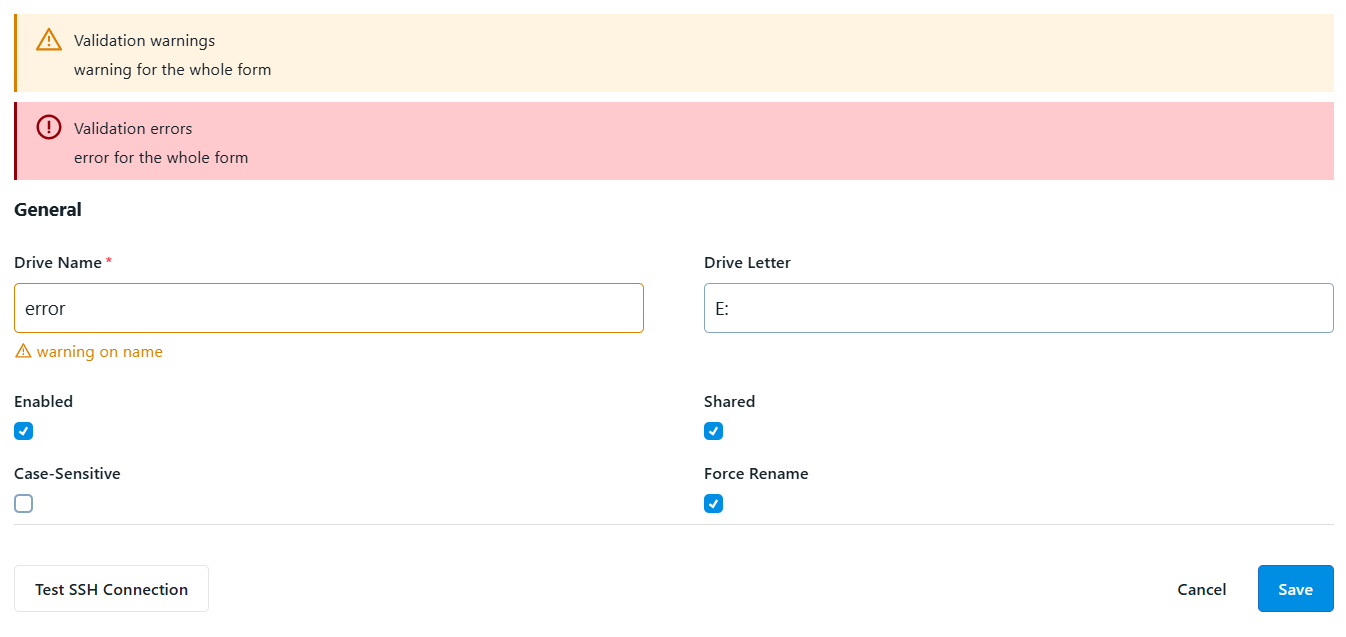

Server-side validation

The Form component can receive and display a server-side validation response. Field related issues are shown just like client-side validation errors, removed when a field is edited. Non-field related issues are displayed in a validation summary view.


Server-side Validation

Submit data

By default the Form component provides a submit button to save the modified data.

<App>
  <Form onSubmit="toast('Saved!')" />
</App>
<App>
  <Form onSubmit="toast('Saved!')" />
</App>

The onSubmit accepts either a block of code or function. When you use a function it receives data in a parameter; in this example it's called toSave but you can use any name. The function can be defined inline, in a code-behind file, or in index.html attached to the global window variable. See the Code chapter for details.

<App>
  <Form
    data="{{ name: 'Joe', age: 43 }}"
    onSubmit="(d) => toast(JSON.stringify(d))"
  >
    <TextBox label="name" bindTo="name" />
    <NumberBox label="age" bindTo="age" integersOnly="true" />
  </Form>
</App>
<App>
  <Form
    data="{{ name: 'Joe', age: 43 }}"
    onSubmit="(d) => toast(JSON.stringify(d))"
  >
    <TextBox label="name" bindTo="name" />
    <NumberBox label="age" bindTo="age" integersOnly="true" />
  </Form>
</App>

To submit via an APICall, use the event helper tag to bridge between the form and the API. The Forms data attribute maps to the APICall's $param context variable. A Toast popup reports success or error.

<App>
  <Form data="{{ name: 'Joe', age: 43 }}">
    <event name="submit">
      <APICall
        url="/api/contacts"
        method="POST"
        body="{$param}" />
    </event>
    <TextBox bindTo="name" label="name" />
    <NumberBox bindTo="age" label="age" integersOnly="true" />
  </Form>
</App>

Form in ModalDialog

ModalDialog supports Form as a first-class citizen component. When a Form nests directly in a ModalDialog, the dialog's button row is replaced with the form's own button row. When form submission is successful, the dialog closes.

Custom inputs with FormItem

For cases where no built-in input component fits your needs, use FormItem to wrap a custom input. FormItem exposes $value (the current value) and $setValue (a function to update it) to its children.

<App>
  <Form
    data="{{ userAvailable: false }}"
    onSubmit="(toSave) => toast.success(JSON.stringify(toSave))">
    <FormItem bindTo="userAvailable">
      <HStack>
        <Button
          label="Toggle"
          backgroundColor="{$value === false ? 'red' : 'green'}"
          onClick="$setValue(!$value)"
        />
      </HStack>
    </FormItem>
  </Form>
</App>
<App>
  <Form
    data="{{ userAvailable: false }}"
    onSubmit="(toSave) => toast.success(JSON.stringify(toSave))">
    <FormItem bindTo="userAvailable">
      <HStack>
        <Button
          label="Toggle"
          backgroundColor="{$value === false ? 'red' : 'green'}"
          onClick="$setValue(!$value)"
        />
      </HStack>
    </FormItem>
  </Form>
</App>

$value represents the current value of the component. $setValue changes the value.

FormItem with a type property (e.g. type="text", type="select") is still supported for backward compatibility, but using the corresponding input component directly is the preferred approach.
